MiP Series

32001505DEU

The 32001505DEU is a Wireless LoRa base communcation module operating in the 868 MHz Band optimized for long range, low power applications, suitable for LPWA networks. Based on LoRa Modem protocol, it provides ultra-long range spread spectrum communication and high interference immunity.

Request information

Highlights

  • Frequency: 868 MHz
  • Modulation: LoRa
  • Dimensions: 11.3 x 8.9 x 2.5 mm
  • Countries: Europe
  • Protocols: LoRa Modem

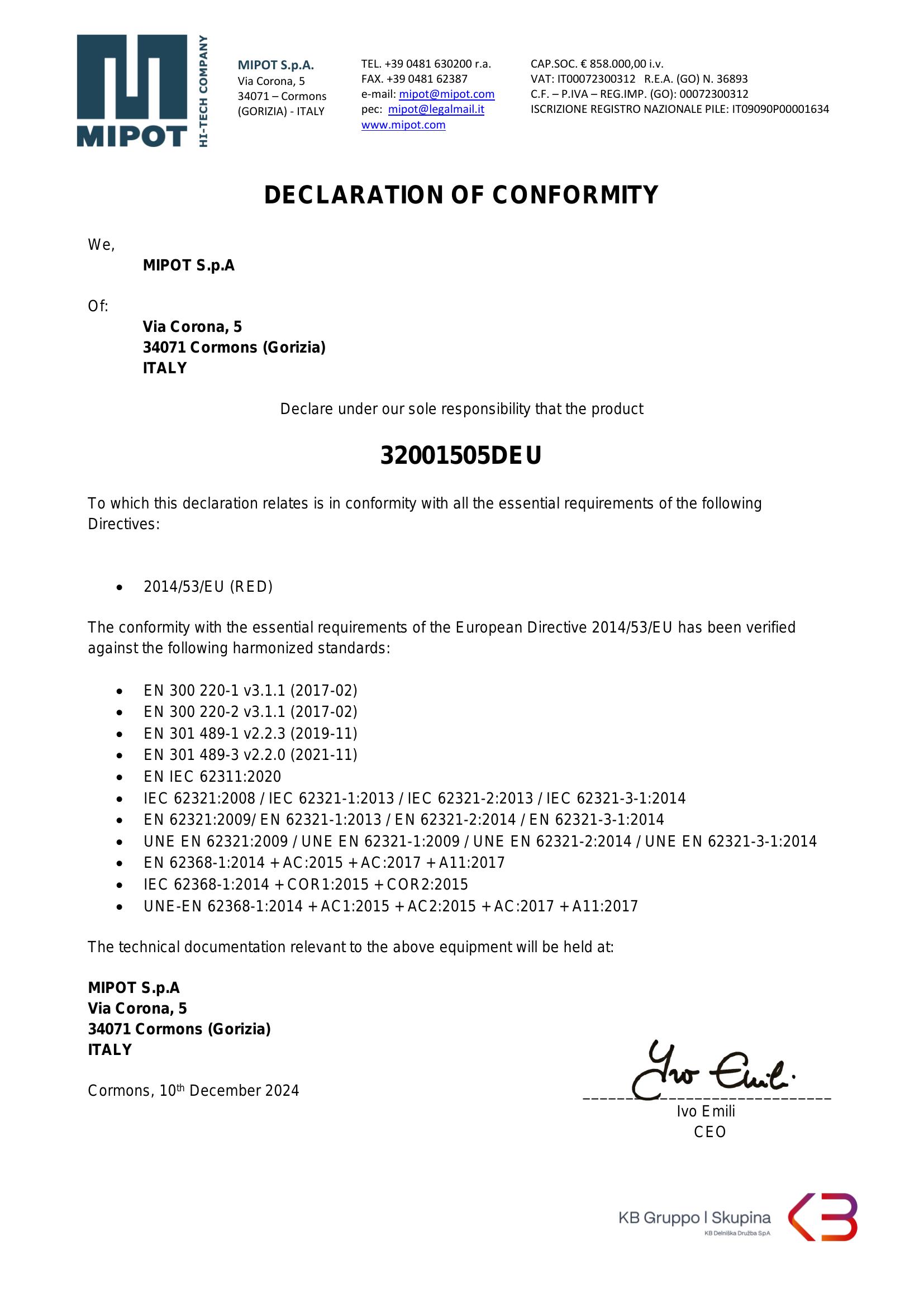

  • Certifications: CE
  • Micro: ARM Cortex M4

Overview

Thanks to its small LGA form factor (11.3 x 8.9 mm) and its low current consumption, this module allows the implementation of highly integrated low power (battery operated) solutions for Internet of Things (IoT) applications like: smart cities, smart metering, building automation, smart agriculture, fleet tracking, waste management, renewable Energy Systems.


Main highlights:


✓ Extremely compact dimensions (1 cm²)
✓ LGA pattern


RF performances:


✓ -135 dBm sensitivity
✓ +14 dBm Output power


Low power characteristics:


✓ power down current consumption 2.2 μA
✓ 11 mA in RX mode


Protocol and interfaces:


✓ LoRa modem
✓ Smart peripheral interfaces (UART, LPUART, SPI, I²C)
